Product Description
Product Description The already popular Axion Portable TV now comes in a bigger size, crispier image display--introducing the Axion 9” Portable TV with hi-resolution display. The bigger screen improves your viewing pleasure, and the most important thing is we still maintain its portability. This TV is great for both indoors and outdoors. The built-in rechargeable battery provides adequate power for you to watch a movie or series (approx. 120mins) when fully charged.
Features - 9-inch Widescreen LCD mobile TV with Hi-Resolution and Hi-Brightness
- Built in ATSC tuner for both Analog & Digital channels
- Brightness adjustable
- A/V Input for external audio/video sources
- Built-in speaker with headphone jack
- Built-in rechargeable Lithium-Polymer battery
- Card style remote control
- Detachable external antenna with big magnet base
Specifications - Signal system: ATSC
- Panel size: 9 inch
- Resolution: 800 x 480
- Power source: DC 9V
- Operating temperature: 5~35°C
- Weight: 1.7 lbs
- Dimensions (W x D x H): 9.9 X 7.7 X 1.3 inch
Accessories - AC adaptor
- Instruction manual
- Remote control
- External rod antenna with detachable magnet base
- Car adaptor A/V cable
Powering and Installation Powering the System Indoors Plug one end of the AC to DC adapter into the DC Input jack on the right side of the mobile TV , then plug the other end into the 100~240V AC power receptacle. Note: Use the provided AC to DC adapter or an adapter with proper specifications. Powering the System with Built-in Battery A built-in rechargeable battery (Li-Polymer) is included for use. When the built-in battery cannot power the TV or is used for the first time, recharge it.
- Turn off the TV
- Connect the AC to DC adapter to the DC jack and a standard wall outlet
- The red charge indicator will light
- Once fully recharged, the light will turn off
- Disconnect the AC to DC adapter after the battery is fully charged
Note: The TV can operate 2 hrs with built-in battery. When the sound level lowers or the picture becomes unstable, charge the battery about 7 hours.
Controls, Indicators, and Connectors Unit View
- IR Sensor: Infrared sensor receives information from remote.
- POWER on/off button
- MENU button: Open and close TV menu or pressing and holding it to interrupt the auto scan.
- Up/Down/Left/Right buttons: Used to navigate on-screen menus.
- CH+/-: Select the previous or next channel.
- VOL+/-: Increase/decrease the volume.
- ENTER button: Confirm your selection.
- INPUT button: Switch between TV and AV IN.
- WIDE button:
Basic TV Wall Mounting: Get your TV wall mounted without breaking the bank. Save space in your living room, and make your TV look like a piece of art. This service includes wall mounting of your TV completed by industry certified technicians. Zip Express Installation will show up in a one hour arrival window, professionally install and mount your TV, and of course leave your place cleaner then Zip Express Installation found it.
Zip Express Installation Will: - Send certified TV Installer(s) to your residence within a one-hour arrival window
- Provide a professional consultation for your TV installation
- Install your pre-purchased TV wall mounting bracket to the desired wall location
- Connect up to three video components to your TV (DVD Player, Blu-Ray Player, Video Game Console, Cable Box. Some exclusions may apply please see details*)
- Cover TV cables with paintable wire molding
- Verify that everything Zip installed is working properly
- Show you how to use your newly installed TV
- Clean up and remove all packaging materials from your home
- Provide you with a two-year installation warranty on workmanship
*Details: This service does not include the plugging in or connection of home theater (speaker) equipment.
How TV Installation Scheduling Works
With Zip Express Installation services you don't have to worry about installers having to survey and bid your installation project. Zip Express Installation has flat rate pricing and an easy 3 step process for scheduling your appointment, and Zip Express Installation will take care of all the details to get your installation completed. You will be able to enjoy your wall mounted TV in as little as 3 days from purchase.

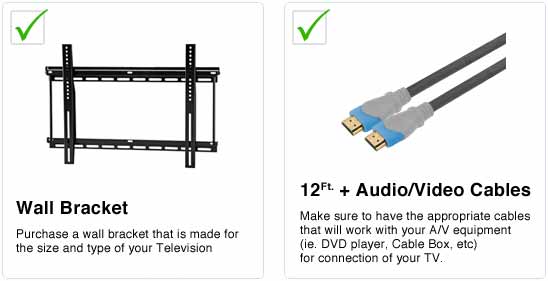

What you need to have for this service
Make sure to have these items on site when Zip Express is there to perform your service.
Zip Express Installation has top rated service professionals! Zip Express Installation is the nation's premier consumer electronics installation provider with more than 16,000 installers coast-to-coast. Zip Express Installation provides consumers with a broad range of professional services at a superior value including TV installation, home theater installation and computer services.
|
(
)
